Spesifikasi Motor Honda CBR 250R 2014 Facelift

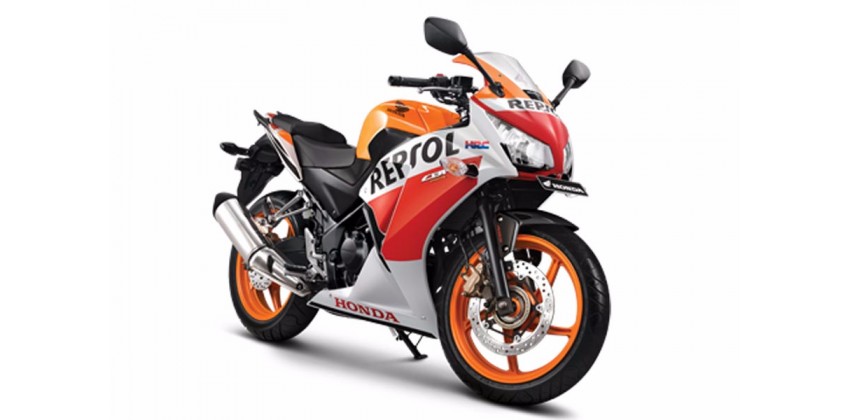

Honda CBR 250R 2014 Facelift
cc
: 250
transmisi
: Manual
type
: Sport

mesin Honda CBR 250R 2014 Facelift

Tipe Mesin
4 Langkah, DOHC, Silinder Tunggal
Volume Langkah/Silinder (CC)
249,67 cm3
Sistem Pendingin
Pendingin cairan
Sistem Suplai Bahan Bakar
PGM-Fi
Diameter (Bore) X Langkah (Stroke)
76,0 x 55,0 mm
Rasio Kompresi
10.7 : 1
Daya Maksimum
29,0 PS (21,0kW) / 9.000 rpm
Torsi Maksimum
23,0 Nm (2,3 kgf.m) / 7.500 rpm
Transmisi
6-Kecepatan
Starter
Starter Elektrik
Kopling
Wet Multiplate with Coil Springs
Fuel Consumption
25 Kmpl

dimension Honda CBR 250R 2014 Facelift

Panjang X Lebar X Tinggi (PLT)
2.033 x 720 x 1.119 mm
Jarak Sumbu Roda
1.378 mm
Jarak Terendah Ke Tanah
146 mm
Curb Weight/Berat Isi
143 Kg

kapasitas Honda CBR 250R 2014 Facelift

Kapasitas Tangki Bahan Bakar/Bensin
13 liter

rangka Honda CBR 250R 2014 Facelift

Tipe Rangka
Twin Spar Steel
Ukuran Ban Depan
110/70-17M/C
Ukuran Ban Belakang
140/70-17M/C
Rem Depan
Cakram Hidrolik (Tersedia versi Anti-Lock Brake System)
Rem Belakang
Cakram Hidrolik (Tersedia versi Anti-Lock Brake System)
Tipe Suspensi Depan
Teleskopik

kelistrikan Honda CBR 250R 2014 Facelift

Sistem Pengapian
Full-Transistor Baterry Ignition
Baterai/Aki
12V – 6Ah
Busi
NGK 81MR8A9
