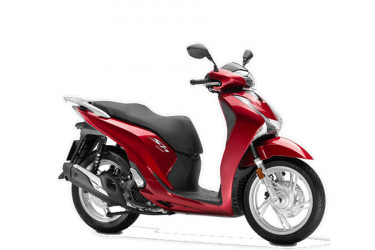

SPESIFIKASI MOTOR Honda SH150i

cc
: 150
transmisi
: Automatic
type
: Skuter

mesin Honda SH150i

Tipe Mesin
4stroke, SOHC, eSP
Volume Langkah/Silinder (CC)
153 cc
Sistem Pendingin
Pendingin Cairan
Sistem Suplai Bahan Bakar
PGM-FI (Programmed Fuel Injection System)
Diameter (Bore) X Langkah (Stroke)
58 x 57.9 mm
Rasio Kompresi
10,6:1
Daya Maksimum
10.9 kW / 8,250rpm
Torsi Maksimum
13,9 Nm / 6,500rpm
Transmisi
Automatic
Starter
Electric
Kopling
Automatic Centrifugal, Dry
Fuel Consumption
40.9 km / L ( ISS ON )

dimension Honda SH150i

Panjang X Lebar X Tinggi (PLT)
2,026 x 740 x 1,158 mm
Jarak Sumbu Roda
1,340 mm
Jarak Terendah Ke Tanah
146 mm
Curb Weight/Berat Isi
136 kg (ABS)
Ketinggian Tempat Duduk
799 mm
Radius Putar
26°
Velg
16"

kapasitas Honda SH150i

Kapasitas Tangki Bahan Bakar/Bensin
7.5 liters
Kapasitas Minyak Pelumas/Oli Mesin
0.9 liter

rangka Honda SH150i

Tipe Rangka
Steel, under born type
Ukuran Ban Depan
100/80–16 M/C 50P ( Tubeless )
Ukuran Ban Belakang
120/80–16 M/C 60P ( Tubeless )
Rem Depan
Disc Brake
Rem Belakang
Disc Brake
Tipe Suspensi Depan
33 mm telescopic fork, 89 mm axle travel
Idling Stop System
Ya

kelistrikan Honda SH150i

Sistem Pengapian
Digital transistorized with electronic advance
Baterai/Aki
12V/5AH
Busi
CPR7EA9(NGK)
Lampu Depan
LED
Lampu Senja
LED
