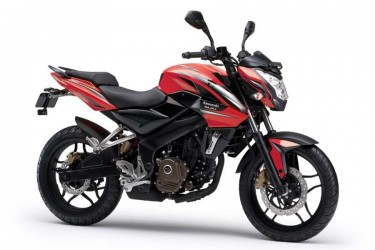

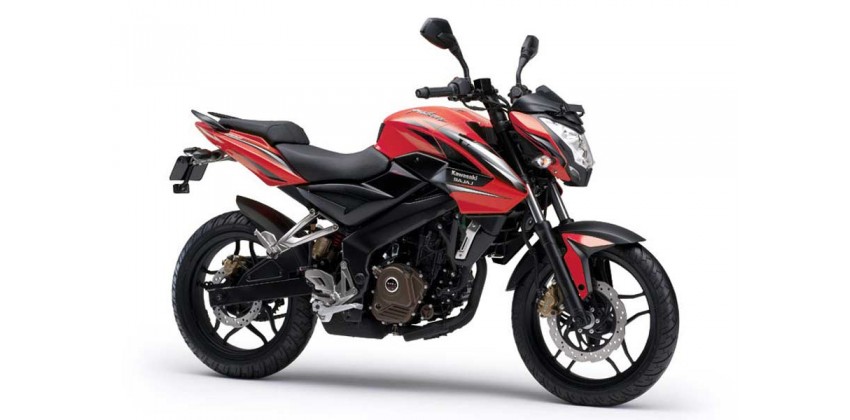

SPESIFIKASI MOTOR Kawasaki Pulsar 200 NS

cc
: 200
pembakaran
: Injeksi
transmisi
: Manual
type
: Naked

mesin Kawasaki Pulsar 200 NS

Tipe Mesin
4-Stroke,DOHC
Volume Langkah/Silinder (CC)
200 cc
Sistem Pendingin
Liquid Cooled
Sistem Suplai Bahan Bakar
Karburator
Diameter (Bore) X Langkah (Stroke)
72x49mm
Rasio Kompresi
11.0 : 1
Daya Maksimum
17kW(23.1ps)/9,500rpm
Torsi Maksimum
18.3n.m(1.8kgf.m)/8,000rpm
Transmisi
Manual
Starter
Electric Start
Susunan Sylinder
1 silinder tegak

dimension Kawasaki Pulsar 200 NS

Panjang X Lebar X Tinggi (PLT)
1,965 mm x 810 mm x 1,055 mm
Jarak Sumbu Roda
1,360mm
Jarak Terendah Ke Tanah
805 mm
Velg
10 spoke

kapasitas Kawasaki Pulsar 200 NS

Kapasitas Tangki Bahan Bakar/Bensin
12 L

rangka Kawasaki Pulsar 200 NS

Ukuran Ban Depan
100/80 - 17
Ukuran Ban Belakang
130/70 - 17
Rem Depan
Dia 280 mm DISC
Rem Belakang
Dia 280 mm DISC
Tipe Suspensi Depan
Telescopic fork with antifriction Bush Dia 37
Tipe Suspensi Belakang
Mono Shock Absorber with Piggy Back gas canister

kelistrikan Kawasaki Pulsar 200 NS

Sistem Pengapian
DC Ignition
Baterai/Aki
12v 8ah VRLA
Lampu Depan
H4 bulb 12v 55/60w
