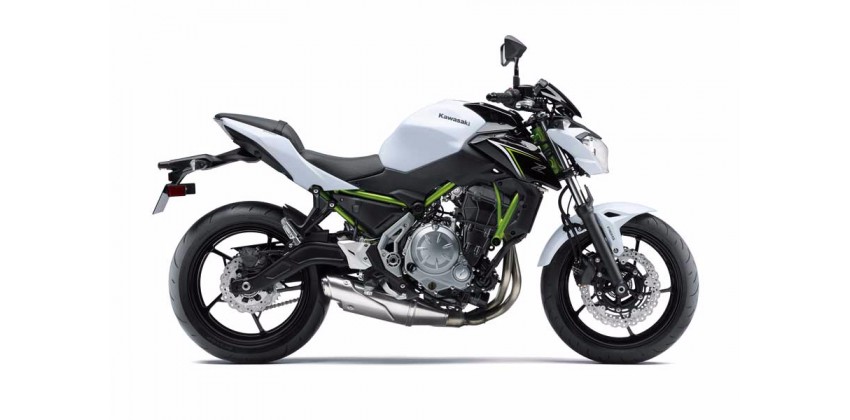

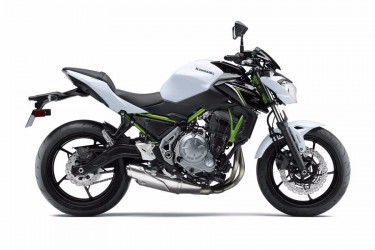

SPESIFIKASI MOTOR Kawasaki Z 650

cc
: 650
pembakaran
: Injeksi
transmisi
: Manual
type
: Naked

mesin Kawasaki Z 650

Tipe Mesin
4-stroke Parallel Twin, DOHC
Volume Langkah/Silinder (CC)
649 cc
Sistem Pendingin
Pendingin Cairan
Sistem Suplai Bahan Bakar
Fuel injection: 36 mm x 2 with dual throttle valves
Diameter (Bore) X Langkah (Stroke)
83.0 x 60.0 mm
Rasio Kompresi
10.8:1
Daya Maksimum
50.2 kW {68 PS} / 8,000 rpm
Torsi Maksimum
65.7 N.m {6.7 kgf.m} / 6,500 rpm
Transmisi
6-speed, return
Pola Perpindahan Gigi
1-N-2-3-4-5-6
Starter
elektrik
Kopling
Wet multi-disc, manual
Susunan Sylinder
V-Ttwin Kembar

dimension Kawasaki Z 650

Panjang X Lebar X Tinggi (PLT)
2,055x775x1,080mm
Jarak Sumbu Roda
1,410 mm
Jarak Terendah Ke Tanah
130 mm
Curb Weight/Berat Isi
187 kg

kapasitas Kawasaki Z 650

Kapasitas Tangki Bahan Bakar/Bensin
15 liter

rangka Kawasaki Z 650

Ukuran Ban Depan
120/70ZR17M/C (58W)
Ukuran Ban Belakang
160/60ZR17M/C (69W)
Rem Depan
Dual semi-floating 300 mm petal discs, ABS
Rem Belakang
Single 220 mm petal disc, ABS
Tipe Suspensi Depan
41 mm telescopic fork
Tipe Suspensi Belakang
Horizontal Back-link with adjustable preload
Sistem Pengereman
ABS

kelistrikan Kawasaki Z 650

Sistem Pengapian
Digital
