Spesifikasi Motor Yamaha Mio J

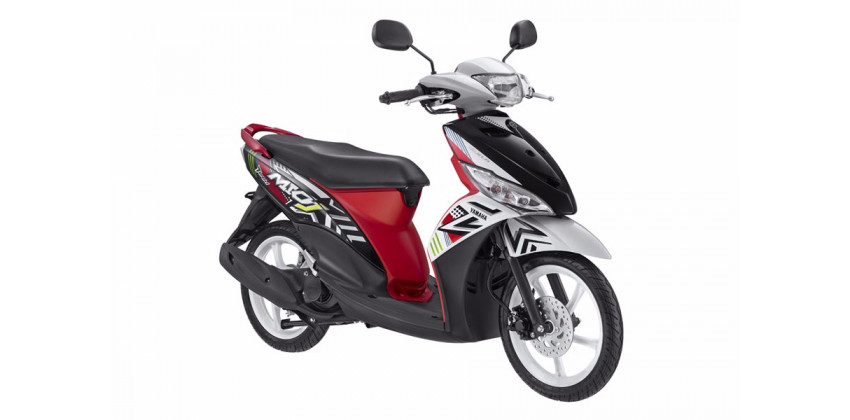

Yamaha Mio J
cc
: 115
pembakaran
: Injeksi
transmisi
: Automatic
type
: Skuter

mesin Yamaha Mio J

Tipe Mesin
4 Langkah, 2 Valve SOHC
Volume Langkah/Silinder (CC)
113,7 cc
Sistem Pendingin
Kipas
Sistem Suplai Bahan Bakar
Fuel injection (FI M-Jet) System
Diameter (Bore) X Langkah (Stroke)
50,0 x 57,9 mm
Rasio Kompresi
9,3 : 1
Daya Maksimum
7,75 PS (5,7 kW) / 5,000 rpm
Torsi Maksimum
8,5 N.m (0.80 kgf-m) / 5000 rpm
Transmisi
V-belt Otomatis
Pola Perpindahan Gigi
CVT Otomatis
Starter
Electric & kick starter
Kopling
Kering, Kopling sentrifugal automatic type
Sistem Pelumasan
Wet sump
Susunan Sylinder
Single cylinder

dimension Yamaha Mio J

Panjang X Lebar X Tinggi (PLT)
1.850 mm x 700 mm x 1.050 mm
Jarak Sumbu Roda
1.260 mm
Jarak Terendah Ke Tanah
130 mm
Curb Weight/Berat Isi
93kg
Ketinggian Tempat Duduk
745 mm
Velg
Cast Wheel,Spoke Wheel

rangka Yamaha Mio J

Tipe Rangka
Underbone
Ukuran Ban Depan
70/90 – 14M/C 34P
Ukuran Ban Belakang
80/90 – 14M/C 40P
Rem Depan
Cakram
Rem Belakang
Tromol
Tipe Suspensi Depan
Teleskopik
Tipe Suspensi Belakang
Unit swing, suspensi tunggal

kelistrikan Yamaha Mio J

Sistem Pengapian
TCI (Transistor control ignition )
Baterai/Aki
YTZ4V / GTZ4V (MF Battery)
Busi
CR6HSA (NGK)
