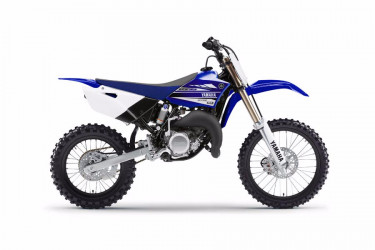

SPESIFIKASI MOTOR Yamaha YZ 85 LW

cc
: 85
pembakaran
: Karburator
transmisi
: Manual
type
: Naked

mesin Yamaha YZ 85 LW

Tipe Mesin
2-stroke, reed-valve
Volume Langkah/Silinder (CC)
85.0
Sistem Pendingin
Liquid-cooled
Sistem Suplai Bahan Bakar
Karburator PWK28
Diameter (Bore) X Langkah (Stroke)
47.5 x 47.8
Rasio Kompresi
8.1 : 1
Transmisi
Constant mesh 6-speed
Starter
Kick
Sistem Pelumasan
Premix

dimension Yamaha YZ 85 LW

Panjang X Lebar X Tinggi (PLT)
1899x758x1156 mm
Jarak Sumbu Roda
1285
Jarak Terendah Ke Tanah
360
Curb Weight/Berat Isi
73
Ketinggian Tempat Duduk
873

kapasitas Yamaha YZ 85 LW

Kapasitas Tangki Bahan Bakar/Bensin
5.0
Karburator
PWK28

rangka Yamaha YZ 85 LW

Tipe Rangka
Semi double cradle
Ukuran Ban Depan
70/100-19 42M Tube type
Ukuran Ban Belakang
90/100-16 52M Tube type
Rem Depan
Hydraulic single disc, 220mm
Rem Belakang
Hydraulic single disc, 190mm
Tipe Suspensi Depan
Telescopic forks, 275mm travel
Tipe Suspensi Belakang
Swingarm (link suspension), 287mm travel

kelistrikan Yamaha YZ 85 LW

Sistem Pengapian
CDI
