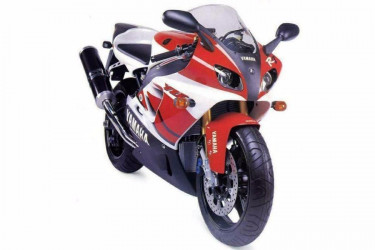

SPESIFIKASI MOTOR Yamaha YZF-R7

cc
: 750
pembakaran
: Injeksi
transmisi
: Manual
type
: Sports

mesin Yamaha YZF-R7

Tipe Mesin
Four stroke, transverse four cylinder, DOHC, 5 valves per cylinder.
Volume Langkah/Silinder (CC)
749
Sistem Pendingin
Liquid cooled
Sistem Suplai Bahan Bakar
Electronic fuel injection
Diameter (Bore) X Langkah (Stroke)
72 x 46 mm
Rasio Kompresi
11.4:1
Daya Maksimum
106 hp / 77.3 kW @ 11000 rpm
Torsi Maksimum
72 Nm / 7.4 kgf-m @ 9000 rpm
Transmisi
6 Speed
Starter
Electric

dimension Yamaha YZF-R7

Jarak Sumbu Roda
1400 mm
Curb Weight/Berat Isi
176 kg
Ketinggian Tempat Duduk
840 mm

kapasitas Yamaha YZF-R7

Kapasitas Tangki Bahan Bakar/Bensin
23 Liters

rangka Yamaha YZF-R7

Ukuran Ban Depan
120/70 ZR17
Ukuran Ban Belakang
180/55 ZR17
Rem Depan
2x 320mm discs 4 piston calipers
Rem Belakang
Single 245mm disc 2 piston caliper
Tipe Suspensi Depan
43mm Öhlins Inverted telescopic forks, preload, compression and rebound damping adjustable.
Tipe Suspensi Belakang
Öhlins piggy-back, preload, compression and rebound damping adjustable.

kelistrikan Yamaha YZF-R7

Sistem Pengapian
CDI
